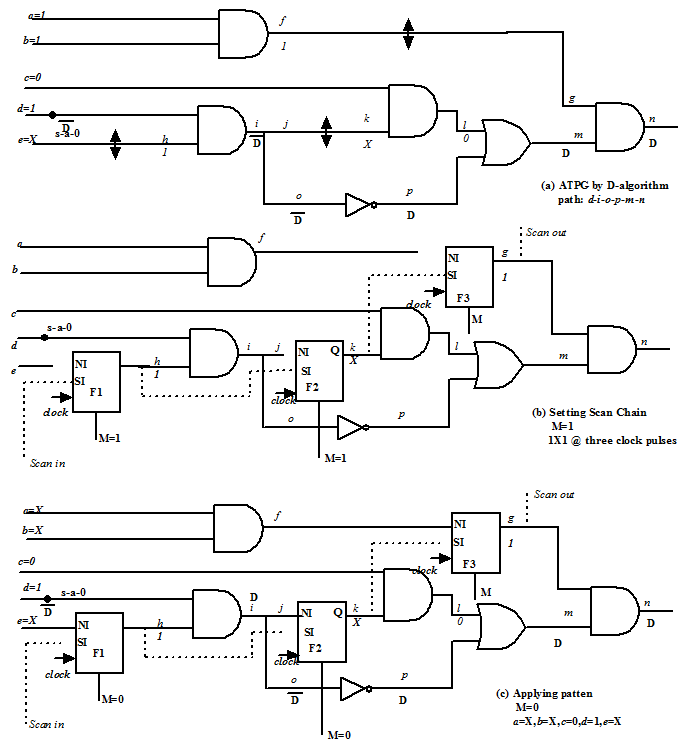

Figure 15. Testing using scan chain and fault propagation through circuit output
Module 10:Sequential Circuit Testing and Scan Chains
Lecture 2 and 3:Scan Chain based Sequential Circuit Testing
Figure 15. Testing using scan chain and fault propagation through circuit output
