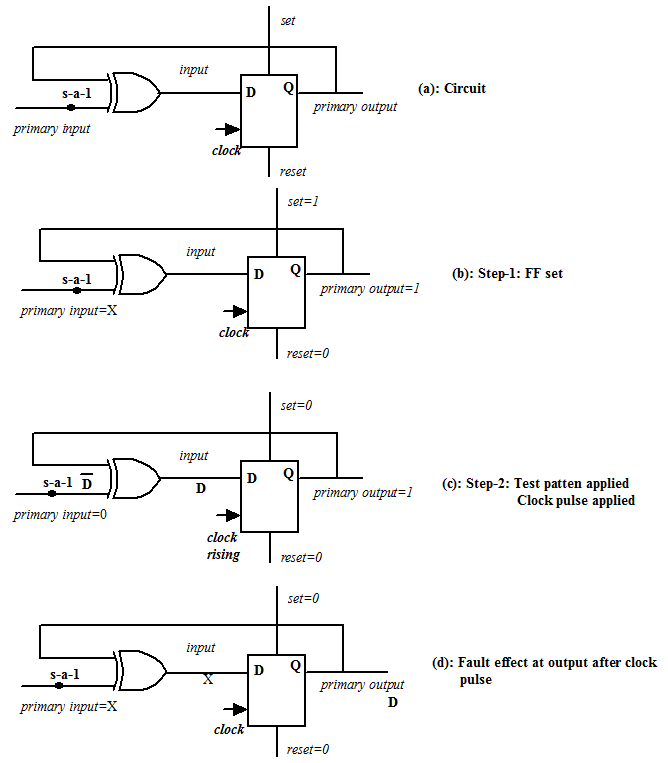

Figure 2. Testing using set/reset flip-flops for a cyclic circuit

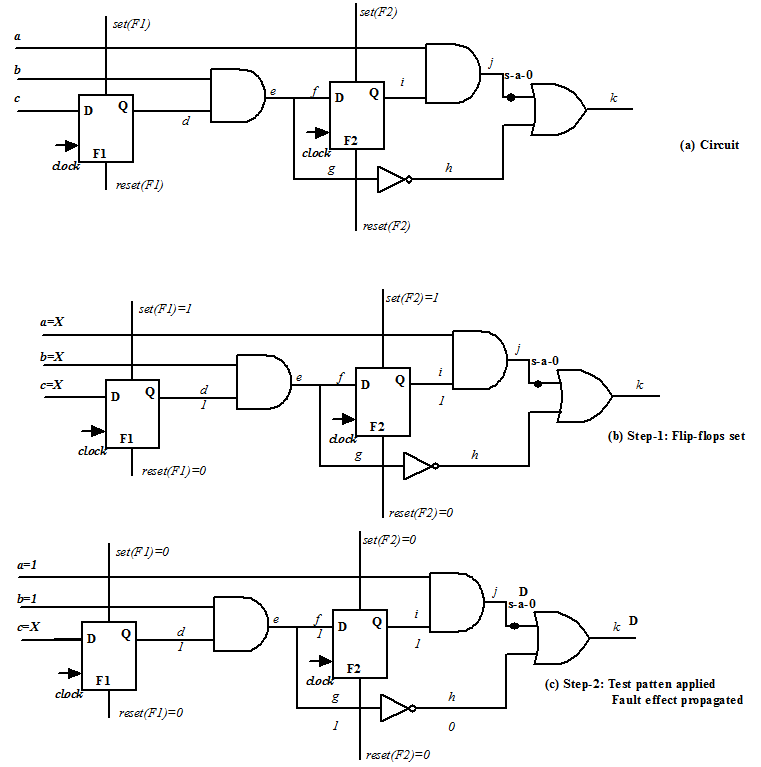

Figure 3. Testing using set/reset flip-flops: illustration of saving in test patterns
Module 10:Sequential Circuit Testing and Scan Chains
Lecture 2 and 3:Scan Chain based Sequential Circuit Testing
Figure 2. Testing using set/reset flip-flops for a cyclic circuit
Figure 3. Testing using set/reset flip-flops: illustration of saving in test patterns
