where are constants to be determined from boundary conditions of the element as shown in Figure 9.5.Equation (9.54) is expected to satisfy the governing differential equation (9.47) of the beam. In addition the cubic displacement shape function satisfies the continuity condition of both the translational and rotational displacements at nodes, which will be shown subsequently.

Each node has two DOFs and these are specified as

All four unknown constants can be determined from these four specified quantities (i.e., boundary conditions).

On application of boundary conditions of the element at two nodes into equations(9.54) and(9.55), we have

The above equations could be written in a matrix form, as

with

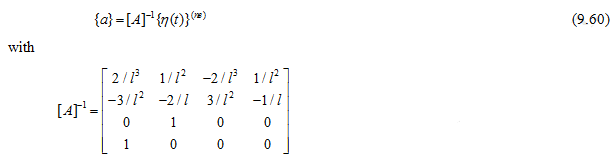

which can be solved for unknown constants as

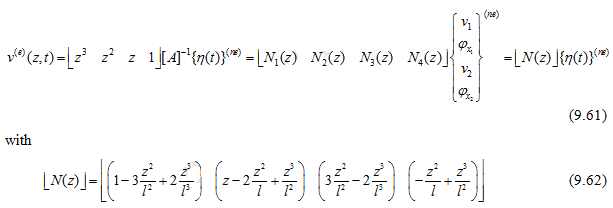

On substituting equation(9.60) into equation(9.54) , we get

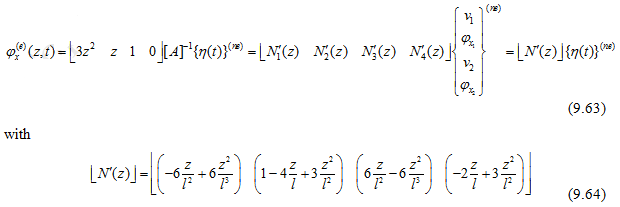

and on substituting equation(9.60) into equation (9.55), we get
