The performance of three controllers, viz., feedforward, feedback and feedforward-feedback, are presented in Fig V.7

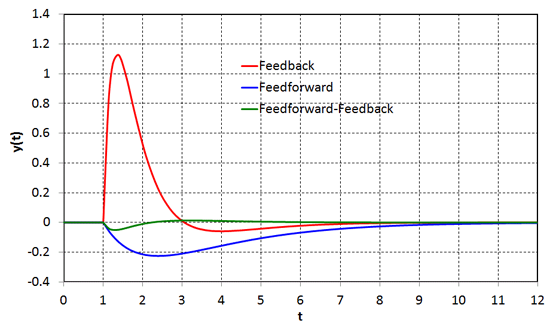

Fig V.7: Comparative performance analysis of three controllers.

It is clearly observed that the performance of feedforward-feedback controller is far better than the other two individual controllers.
