Module 5 : Other control strategies
Lecture 1 : Feedforward control
|
|

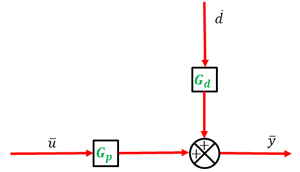

(a) Open-loop process diagram |

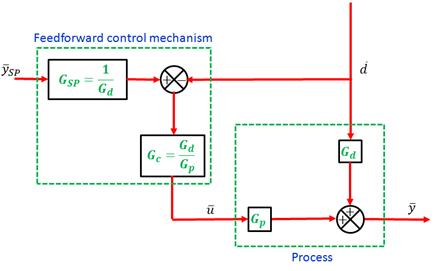

(b) Process diagram with feedforward controller |

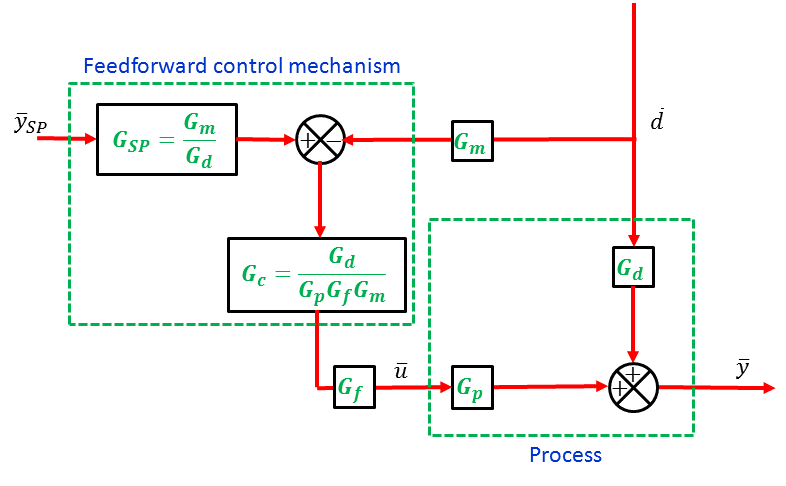

(c) Process diagram with feedforward controller, sensor and valve |
Fig V.3: The schematic of a feedforward controller mechanism |
