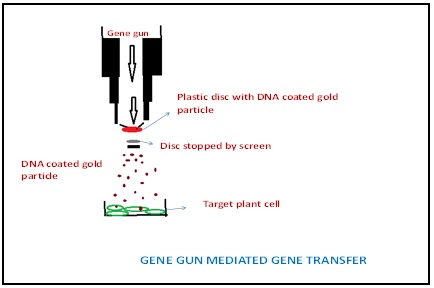

Figure 8-1.7.2.2: Gene gun mediated gene transfer

In particle bombardment method, the tungsten or gold particles (micro projectiles) are coated with the foreign DNA. Micro-projectile bombardment uses high-velocity metal particles to deliver biologically active DNA into the target cells. The macroprojectile is coated with the coated particles and is accelerated with air pressure and shot into plant the target tissue. A perforated plate is used, which allows the micro-projectiles to pass through to the cells on the other side of the plate and stops the macropojectile. Particle coated with the foreign gene releases the foreign gene when enters into the target cell and integrates into the chromosomal DNA. This technique is also used to transfer genes in mammalian cells. Mammalian cell lines like HEK 293, MCF7 showed gene expression when transfected with luciferase and green fluorescent genes and their gene expression was dependent on helium pressure, size and amount of gold particle and DNA load on each particle. Cell viability depends on helium pressure.

(Refer to lecture 3 of module 5 for advantages and limitations)
