Chapter 9 :  Digital Filters


In many applications of signal processing we want to change the relative amplitudes and frequency contents of a signal. This process is generally referred to as filtering. Since the Fourier transform of the output is product of input Fourier transform and frequency response of the system, we have to use appropriate frequency response.


Ideal frequency selective filters

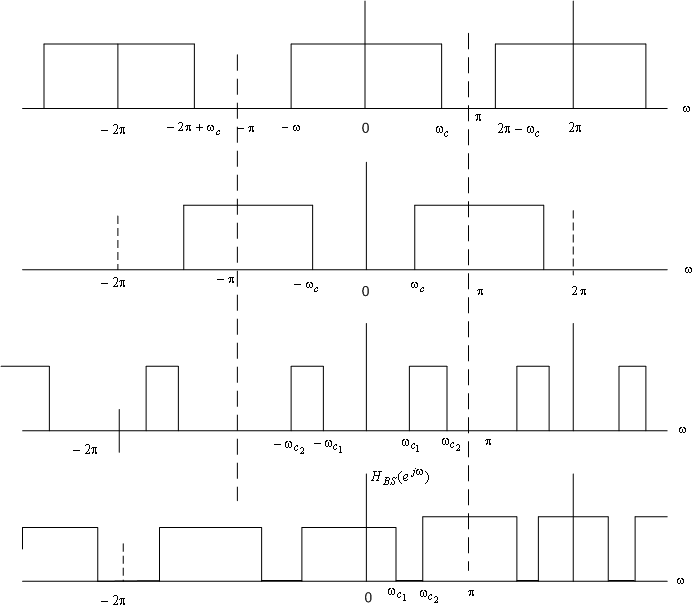

An ideal frequency reflective filter passes complex exponential signal. for a given set of frequencies and completely rejects the others. Figure (9.1) shows frequency response for ideal low pass filter (LPF), ideal high pass filter (HPF), ideal bandpass filter (BPF) and ideal backstop filter (BSF).


Fig 9.1

The ideal filters have a frequency response that is real and non-negative, in other words, has a zero phase characteristics. A linear phase characteristics introduces a time shift and this causes no distortion in the shape of the signal in the passband.

Since the Fourier transfer of a stable impulse response is continuous function of , can not get a stable ideal filter.
