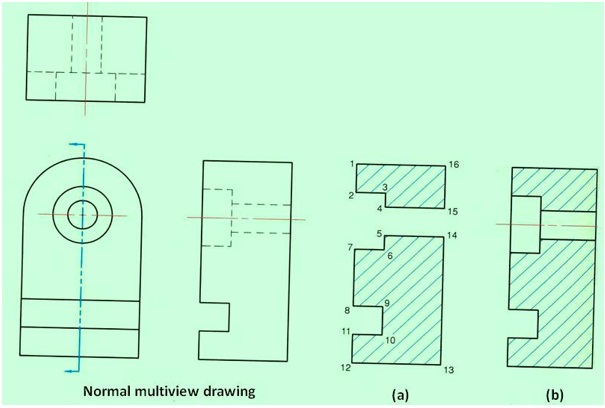

Figure 10. showing the object, orthographic view, sectioned surface and sectional view.

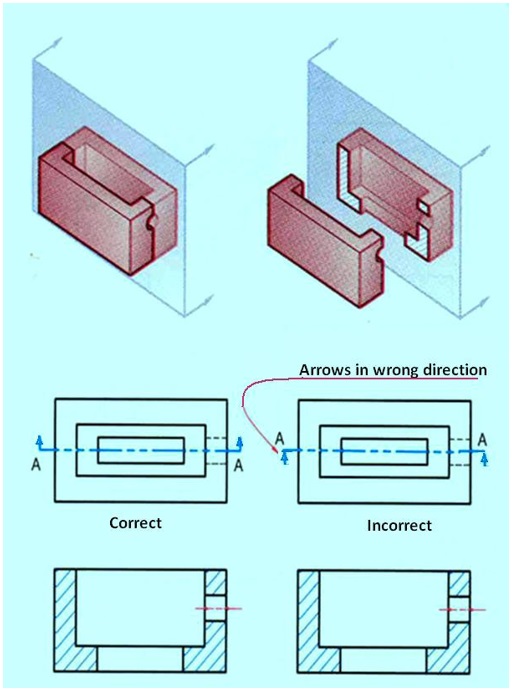

CUTTING PLANE LINES: The cutting plane line show the exact line along which the cutting plane passes through the object. This represent the  edge view of the cutting plane and are drawn in the view(s) adjacent to the section view. This is represented in figure 11. In the figure the cutting plane line is drawn in the top view, which is adjacent to the sectioned front view.



Figure 11 showing the representation of a cutting plane line
