Bio-MEMS Sensor

  Cantilever based

Concept: cantilever structure with antigen

Effects:

Change in mass

Deflection due to repulsive forces

Detection of bacteria by



Optical


Capacitive


Other techniques like resonance freq.

Figure 31.9 Bio MEMS Sensor.
  Micro-actuators example

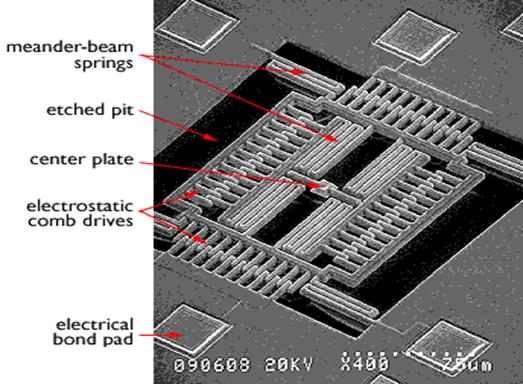

Comb Drive


Figure 31.10 Comb Drive

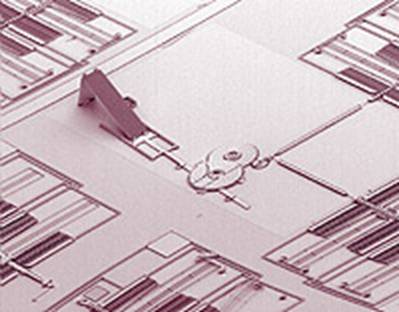

Micro-actuators



Comb drive operating gears


Figure 31.11
