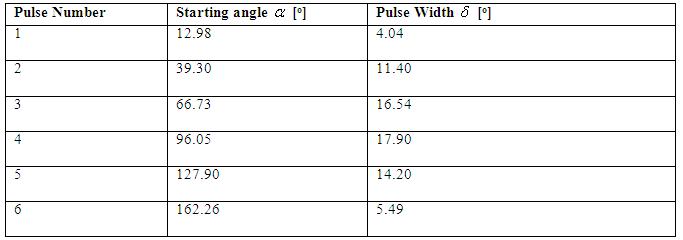

Table 1: The starting angle and pulse width for Sine PWM with 6 pulses per half cycle
|

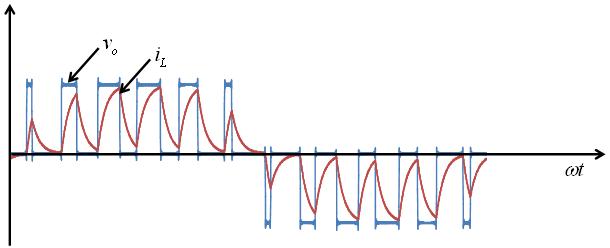

Figure 7: Voltage and Current waveforms for Sinusoidal PWM with 6 pulses per half cycle |
Module 5: DC-AC Converters
Lecture 16 : Voltage Control of DC-AC Inverters Using PWM
Table 1: The starting angle and pulse width for Sine PWM with 6 pulses per half cycle
|
Figure 7: Voltage and Current waveforms for Sinusoidal PWM with 6 pulses per half cycle |
