The magnitude of the currents for R-L load are given by

                   (10)

The rms value of the output voltage is

                                                                          (11)

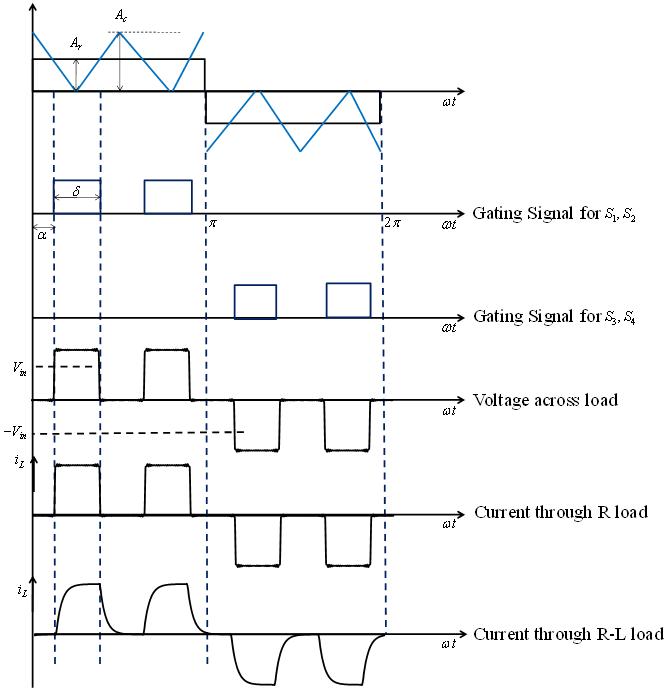

Figure 5: Currents and voltages in single phase DC-AC inverter for Multi-PWM
