Module 2 : Traffic Measurement Procedures
Lecture 06 : Measurement over a Short Section
1 2 3 4 5 6 7 8 9 10 11 12


Data Collection Sheets

The measured data by the above techniques should be collected into some formats, following are the some types of data collection sheets which are used for manual and automatic methods,
  1. For Enoscope and Pavement Marking Methods

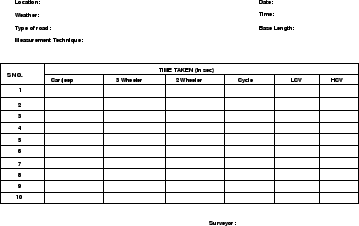

    Figure 1: Data collection sheet for Enoscope and Pavement Marking Methods
    \includegraphics[height = 5cm]{qfdatacollection1}
  2. For automatic methods

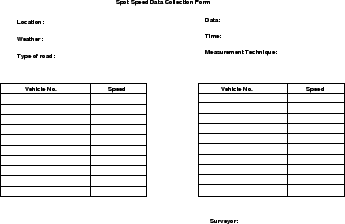

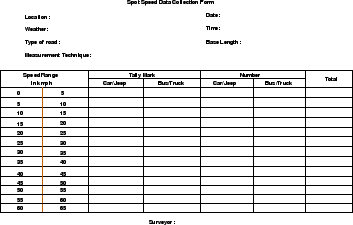

    Figure 2: Data collection sheet for Automatic Methods
    \includegraphics[height = 5cm]{qfdatacollection2}
    \includegraphics[height = 5cm]{qfdatacollection3}
