Light sensors

A light sensor is a device that is used to detect light. There are different types of light sensorssuch as photocell/photoresistor and photo diodes being used in manufacturing and other industrial applications.

Photoresistor is also called as light dependent resistor (LDR). It has a resistor whose resistance decreases with increasing incident light intensity. It is made of a high resistance semiconductor material, cadmium sulfide (CdS). The resistance of a CdSphotoresistor varies inversely to the amount oflight incident upon it.Photoresistor follows the principle of p hotoconductivity which results from the generation of mobile carriers when photons are absorbed by the semiconductor material.

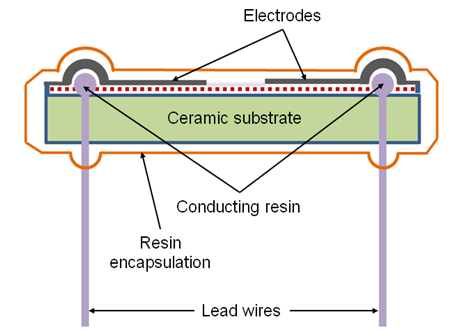

Figure 2.5.6 shows the construction of a photo resistor. The CdS resistor coil is mounted on a ceramic substrate. This assembly is encapsulated by a resin material. The sensitive coil electrodes are connected to the control system though lead wires. On incidence of high intensity light on the electrodes, the resistance of resistor coil decreases which will be used further to generate the appropriate signal by the microprocessor via lead wires.

Figure 2.5.6 Construction of a photo resistor

Photoresistors are used in science and in almost any branch of industry for control, safety, amusement, sound reproduction, inspection and measurement.

Applications of photo resistor

• Computers, wireless phones, and televisions, use ambient light sensors to automatically control the brightness of a screen

• Barcode scanners used in retailer locations work using light sensor technology

• In space and robotics: for controlled and guided motions of vehicles and robots. The light sensor enables a robot to detect light. Robots can be programmed to have a specific reaction if a certain amount of light is detected.

• Auto Flash for camera

• Industrial process control
