1.2 Root locus diagram of digital control systems

We will first investigate the effect of controller gain K and sampling time T on the relative stability of the closed loop system as shown in Figure 1.

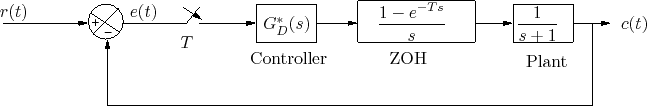

Figure 1: A discrete time control system

Let us first take T=0.5 sec.

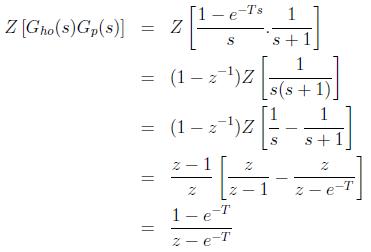

Let us assume that the controller is an integral controller, i.e., . Thus,

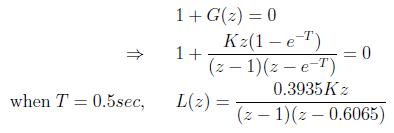

The characteristic equation can be written as

has poles at z = 1 and z = 0.605 and zero at z = 0.

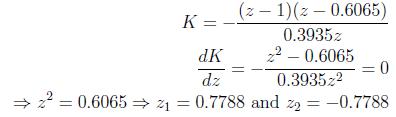

Break away/ break in points are calculated by putting .
