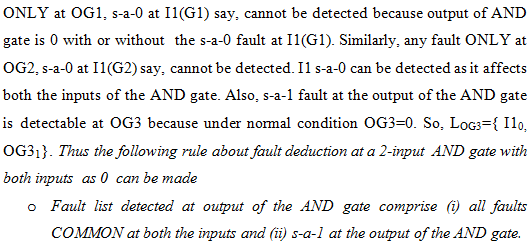

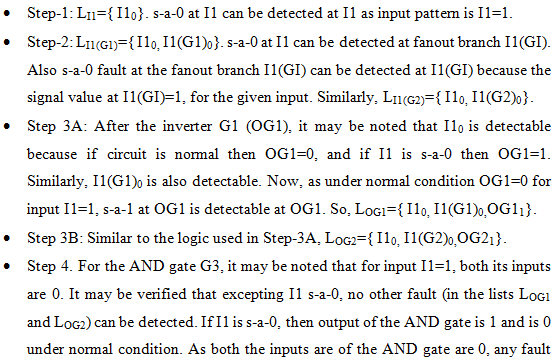

So, now the question remains, what are the rules for fault deduction at a 2-input AND gate with one input as 1 and the other 0. The rules are explained using another example in Figure 13.

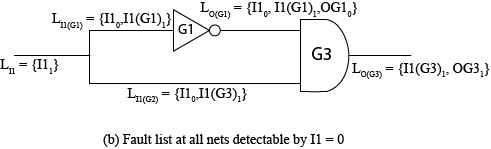

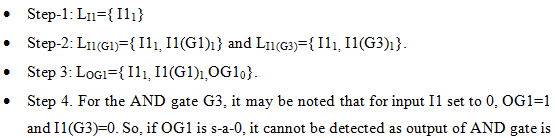

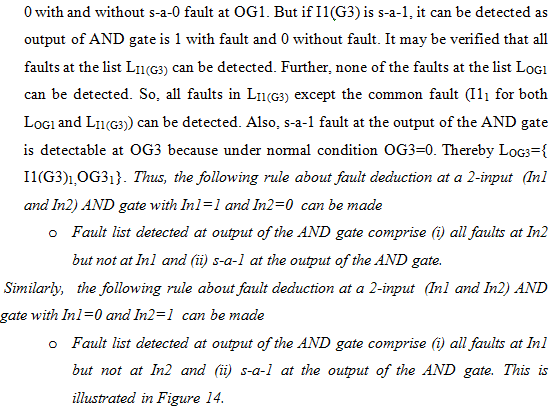

Figure 13. Example of deductive fault simulation with input I1=0 (Inputs of the AND gate are 1 and 0)
