Module 6 : Traffic Intersection Control
Lecture 29 : Road Markings
1 2 3 4 5 6 7 8 9


Traffic lane lines

The subdivision of wide carriageway into separate lanes on either side of the carriage way helps the driver to go straight and also curbs the meandering tendency of the driver. At intersections, these traffic lane lines will eliminate confusion and facilitates turning movements. Thus traffic lane markings help in increasing the capacity of the road in addition ensuring more safety. The traffic lane lines are normally single broken lines of 100 mm width. Some examples are shown in figure 1 and figure 2.
Figure 1: Lane marking for a four lane road with solid barrier line
\begin{figure} \centerline{\epsfig{file=t28-lane-marking.eps,width=8cm}} \end{figure}

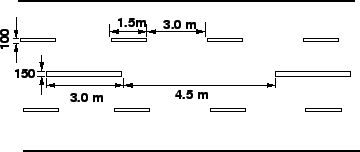

Figure 2: Traffic lane marking for a four lane road with broken center line
\begin{figure} \centerline{\epsfig{file=t27-solid-and-broken-line-marking.eps,width=8cm}} \end{figure}
