Module 2 : Spectroscopic Techniques

Lecture 10 : Infrared Spectroscopy

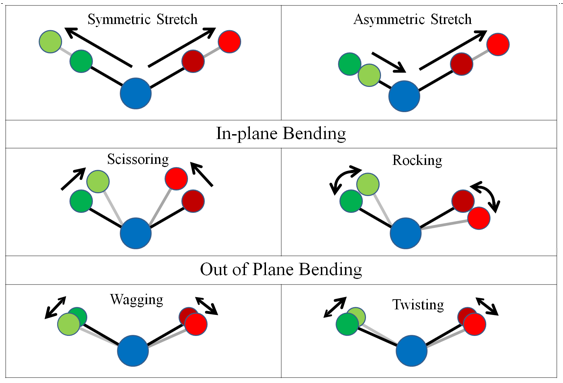

Figure 10.3 Stretching and bending vibrations in molecules



Hooke’s law and frequency of vibration


We have seen that the bonds are not static but vibrating in different ways. A vibrating bond can therefore be considered a spring with its ends tethered to two atoms (Figure 10.4).

Figure 10.4 Spring analogy of a bond vibration

If the masses of the atoms are m1 and m2, the frequency of stretching vibration of the diatomic molecule can be given by the Hooke’s law:

               ..............................................................................(10.1)

where, ν is the frequency of vibration, k is the spring constant, and μ is the reduced mass i.e.

Dividing equation 10.1 by λ gives:

               ............................................................................(10.2)
