Module 2 : Electrostatics
Lecture 11 : Conductors and Dielectric
     Potential due to a dielectric

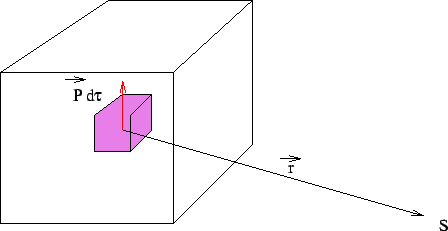

  Consider the dielectric to be built up of volume elements $d\tau$. The dipole moment of the volume element is $\vec P d\tau$
  The potential at a point S, whose position vector with respect to the volume element is $\vec r$is

\begin{displaymath}d\phi = \frac{1}{4\pi\epsilon_o} \frac{\vec P\cdot\hat r}{r^2}d\tau\end{displaymath}

\includegraphics{fig48.eps}
