X-Ray Photoelectron Spectroscopy (XPS): |
| |
Instrumentation and working
|
| |
Basic components of XPS instrumentation are: |
| |
1. Source, 2. Sample Holder, 3. Analyzer, 4.Detector and 5. Signal Processor |
|
| |
Source: A common source is an X-ray tube with both Al or Mg target and a suitable filter. For the analysis of heavy elements Cu, Mn and Ag targets with suitable filters are used. |
| |
Sample holder: Samples like a piece of metal are mounted close to source, which is evacuated upto 10-9 torr to avoid contamination by oxygen and water vapors. |
| |
Analyzer: Hemispheric analyzers are used to distinguish electrons of different energies by applying electrostatic and magnetic fields. |
| |
Detector and signal Processor: Usually Channeltrons or solid-state detectors are used to attain required sensitivities. |
| |

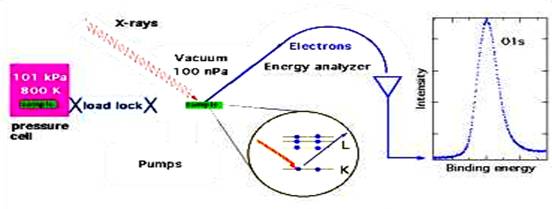

Figure 37.2 Block diagram of X-ray Photoelectron Spectroscopy |
1. |
Surface analysis for elemental composition.
|
2. |
To determine different oxidation states of the elements. |
3. |
For structural analysis of molecules. |
4. |
It is also useful for qualitative analysis of the surfaces. |
