Module 1 : Signals In Natural Domain
Lecture 4 : Properties of Systems

Linearity:

Now we come to one of the most important and revealing properties systems may have - Linearity. Basically, the principle of linearity is equivalent to the principle of superposition, i.e. a system can be said to be linear if, for any two input signals, their linear combination yields as output the same linear combination of the corresponding output signals.

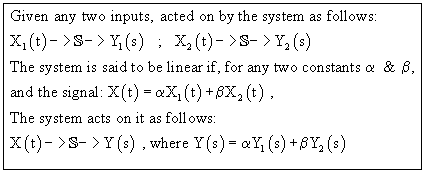

Definition:

(It is not necessary for the input and output signals to have the same independent variable for linearity to make sense. The definition for systems with input and/or output signal being discrete-time is similar.)

Example of linearity

A capacitor, an inductor, a resistor or any combination of these are all linear systems, if we consider the voltage applied across them as an input signal, and the current through them as an output signal. This is because these simple passive circuit components follow the principle of superposition within their ranges of operation.
