TEM: Analysis of SAED pattern

X-ray diffraction & SAED Pattern:

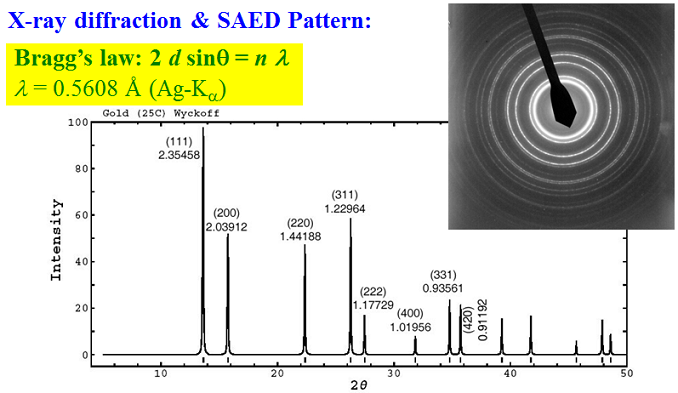

Figure 15.03: Identification of d-values from XRD.

Since the Bragg reflections, hkl planes and the lattice spacing are known for gold sample from XRD pattern, the camera length for the TEM image can be determined using L=(R.d) / λ, if one calculates the diameter of the ring using image software (photoshop) and knowing the wavelength of the electron. A typical calculation is shown in the next slide:
