TEM: Analysis of SAED pattern

X-ray diffraction & SAED Pattern:

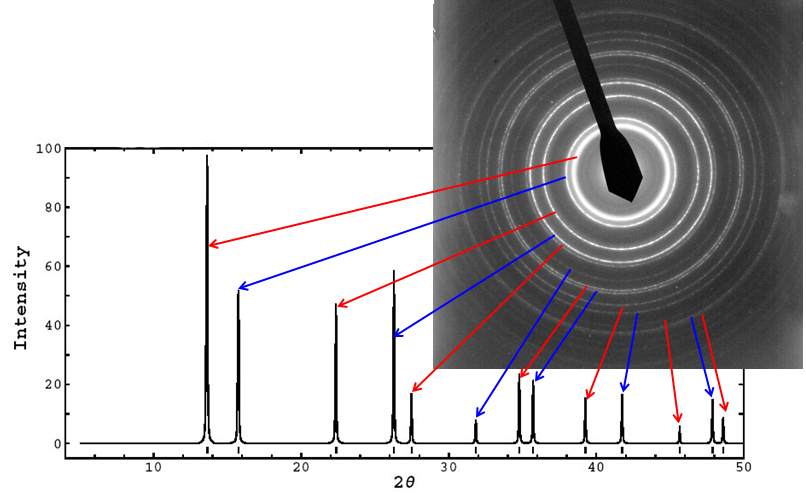

Figure 15.02: The comparison between XRD and SAED patterns.

Figure 15.02 shows both XRD and SAED patterns of the gold sample. All the observed Bragg reflections in the XRD pattern are consistent with the SAED ring patterns.
