Modified Williamson-Hall Plot (MWHP) Method:

The deviations are larger when the material being studied is elastically anisotropic, where the residual strains affect some Bragg reflections more than others. Ungar and co-workers suggested methods to take this into consideration through the introduction of a dislocation contrast factor C_hkl [3].

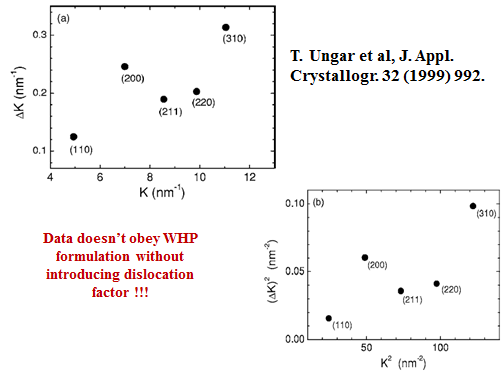

Figure 5.04 displays the different plots of XRD peaks data using MWHP method without taking into dislocation factors. It is evident that the data points are not falling in a simple straight line.

Figure 5.04: Different functional form of XRD peak data using MWHP method without the dislocation contrast factor.

Ref.[3]: T. Ungar, G. Tichy, "The effect of dislocation contrast on X-ray line profiles in untextured polycrystals", Phys. Status Solidi A, 171 (1999), pp. 425.
