2.  Main line filters

These filters are used to remove the water vapors or solid contaminants present in the pneumatic systems main lines. These filters are discussed in detail as follows.

2.1 Air filter and water trap

Air filter and water trap is used to

• prevent any solid contaminants from entering in the system.
• condense and remove water vapor that is present in the compressed air.

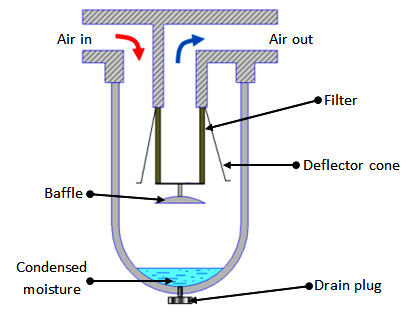

Fig. 6.3.2 Air filter and water trap

The filter cartridge is made of sintered brass. The schematic of the filter is shown in Fig. 6.3.2. The thickness of sintered cartridge provides random zigzag passage for the air to flow-in which helps in arresting the solid particles. The air entering the filter swirls around due to the deflector cone. The centrifugal action causes the large contaminants and water vapor to be flung out, which hit the glass bowl and get collected at the bottom. A baffle plate is provided to prevent the turbulent air from splashing the water into the filter cartridge. At the bottom of the filter bowl there is a drain plug which can be opened manually to drain off the settled water and solid particles.

2.2 Refrigerated dryers

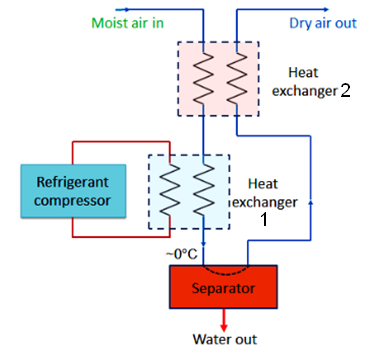

Fig. 6.3.3 Refrigerated dryers

It consists of two heat exchangers, refrigerant compressor and a separator. The system circuitry is shown in Figure 6.3.3. The dryer chills the air just above 0°C which condenses the water vapor. The condensate is collected by the separator. However such low temperature air may not be needed at the application. Therefore this chilled air is used to cool the high temperature air coming out from the compressor at heat exchanger 2. The moderate temperature dry air coming out from the heat exchanger 2 is then used for actual application; whilst the reduced temperature air from compressor will further be cooled at heat exchanger 1. Thus, the efficiency of the system is increased by employing a second heat exchanger.
