Isometric projection is a type of pictorial projection in which the dimensions along the three axes of the solid are shown in one view. It is one of the three types of  axonometric projection
In axonometric drawing, one axis of space is shown vertical and depending on the exact angle at which the view deviates from the orthogonal, axonometric projections are generally three types:  (a) trimetric projection, (b) dimetric projection, and (c) isometric projection.. This is illustrated in figure 2.

1. In trimetric projection, the direction of viewing is such that all of the three axes of space appear unequally foreshortened. The scale along each of the three axes and the angles among them are determined separately as dictated by the angle of viewing. Trimetric perspective is seldom used
2. In dimetric projection, the direction of viewing is such that two of the three axes of space appear equally shortened, of which the attendant scale and angles of presentation are determined according to the angle of viewing; the scale of the third direction (vertical) is determined separately.  When two of the three angles are equal, the drawing is classified as a dimetric projection. Dimetric drawings are less pleasing to the eye, but are easier to produce than trimetric drawings
3. In isometric projection, the most commonly used form of axonometric projection in engineering drawing. Here all three angles are equal. The isometric is the least pleasing to the eye, but is the easiest to draw and dimension.

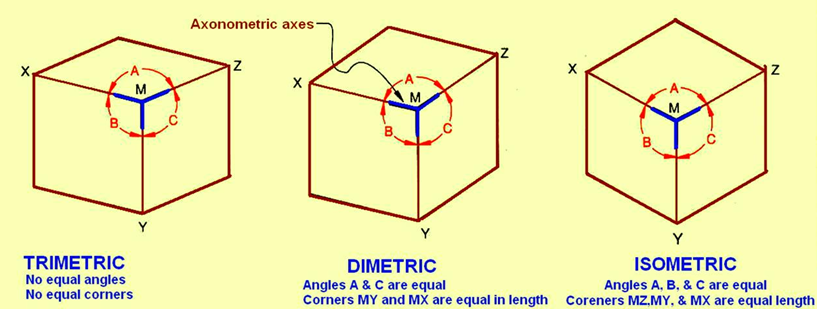

Figure 2. Shows the three types of axinometric drawing. The angles determine the type of axinometric drawing.
