Table 2: The parameters of a non salient pole PM machine

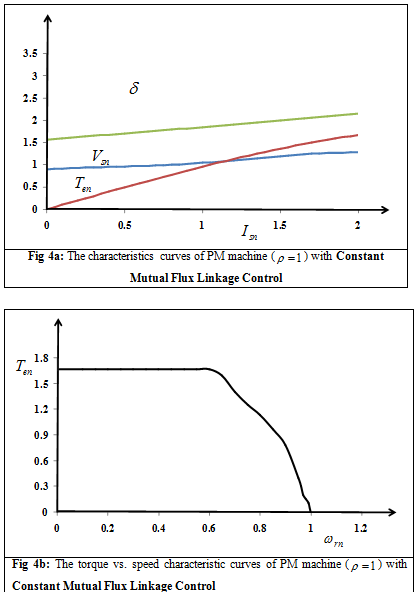

Case when ρ ≠ 1

When ρ ≠ 1,  using  equation 20 the expression for δ is obtained

(27)

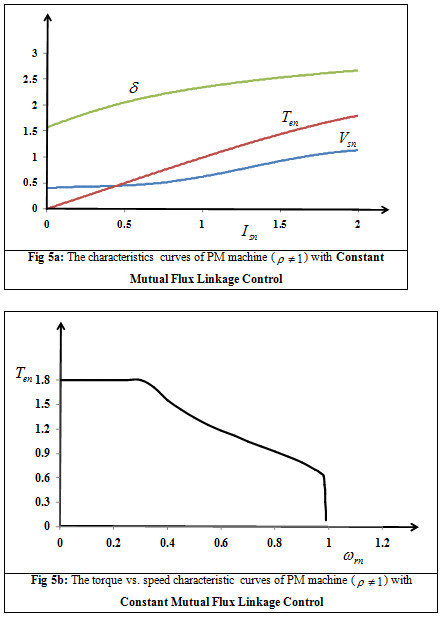

The performance characteristics of the machine, whose parameters are given in Table 1, are shown in Figure 5a and the torque versus speed characteristics is shown in Figure 5b.
