When diodes D₁ and D₂ conduct, energy is fed back to the dc source and these diodes are known as feedback diodes . These diodes are also known ad freewheeling diodes . The current for purely inductive load is given by

                                                                       (9)

Similarly, for the R-L load. The instantaneous load current is obtained as

                                                       (10)

The instantaneous voltage (v_o) across R-L load and the instantaneous current (i_L) through it are shown in Figure 7 .

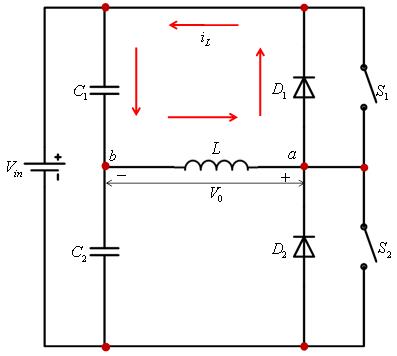

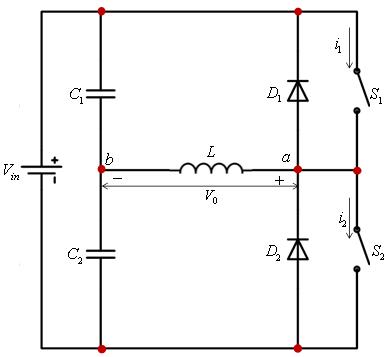

Figure 4 : DC-AC inverter with inductive load	Figure 5 : Load current in case 1

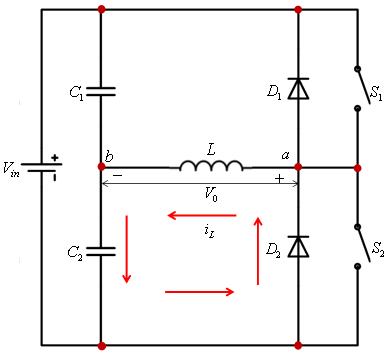

Figure 6 : Load current in case 2	Figure 7 : Instantaneous output voltage and load current through R-L load
