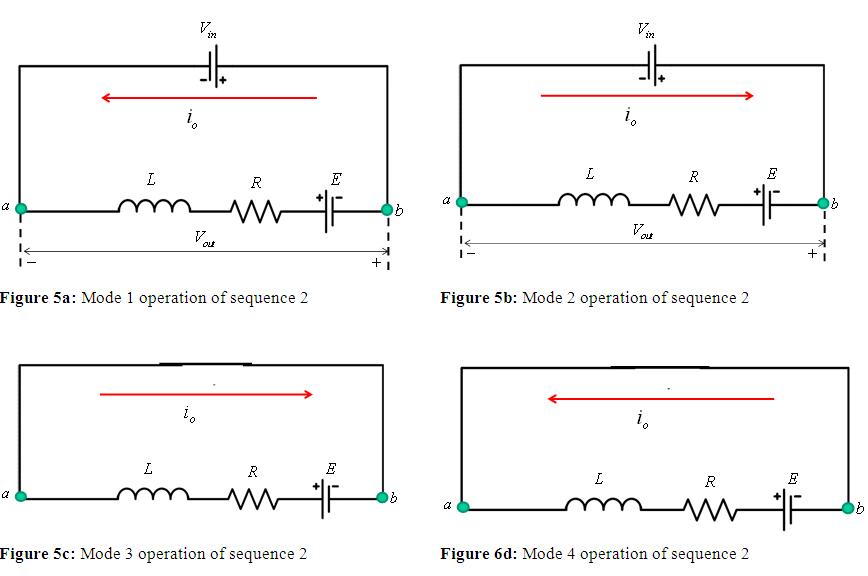

• The waveforms for this sequence are shown in Figure 6 .

•

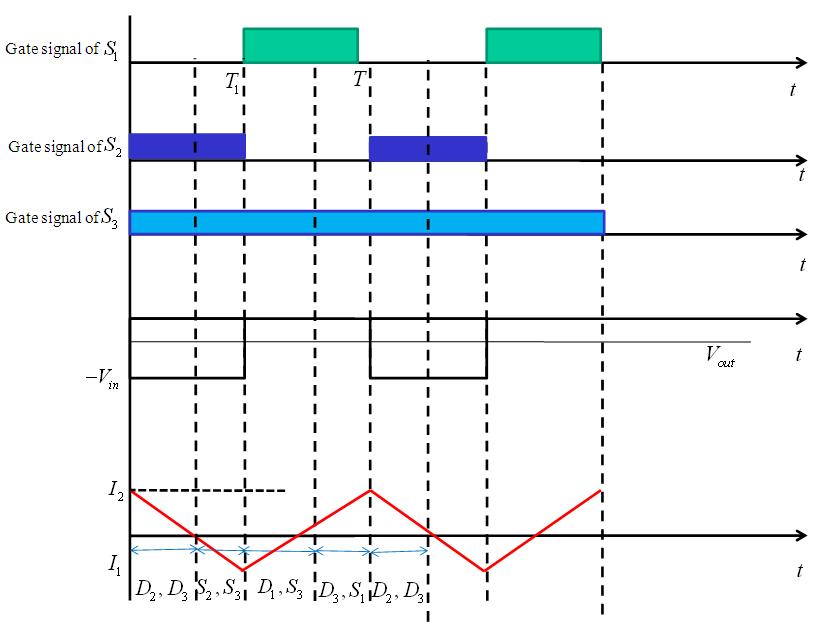

• Figure 6: Waveforms for sequence 2



Suggested Reading:

[1] M. H. Rashid, Power Electronics: Circuits, Devices and Applications , 3 rd edition, Pearson, 2004

[2] V. R. Moorthi, Power Electronics: Devices, Circuits and Industrial Applications , Oxford University Press, 2007
