In modern EV's configuration:
- • Three phase motors are generally used to provide the traction force
• The power converter is a three-phase PWM inverter
• Mechanical transmission is based on fixed gearing and a differential
• Li-ion battery is typically selected as the energy source

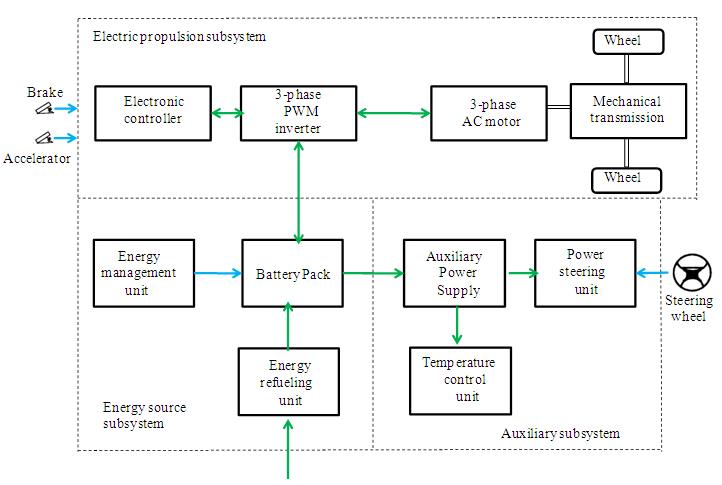

The typical setup of the EV is shown in Figure 2 .
 |
-
Figure 2: Typical Configuration of a Electric Vehicle
