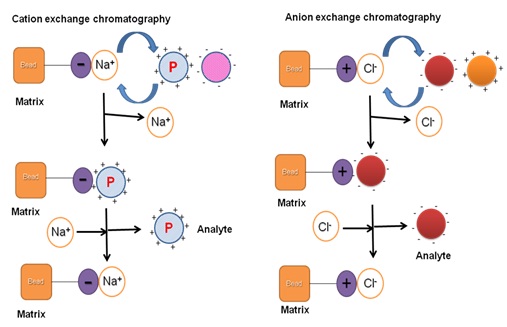

Figure 30.2:  Cation and Anion exchange chromatography.

Isoelectric point and charge on a protein: Protein is a polymer made up of amino acids with ionizable side chain. At a particular pH, these amino acid side chain ionizes differentially to give a net charge (positive/negative) to the protein. The pH at which the net charge on a protein is zero is called as Isoelectric point (pI). The protein will have a net positive charge below the pI where as it has net negative charge above the pI value (Figure 30.3).

Choice of a Ion-exchange column matrix-Before starting the isolation and purification of a substance, a choice for a suitable ion-exchange chromatography is important. There are multiple parameter which can be consider for choosing the right column matrix.
