Emitter Bias:

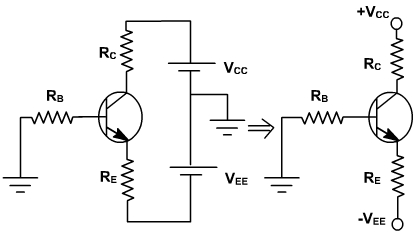

Fig. 5, shown the emitter bias circuit. The circuit gets this name because the negative supply V_EE is used to forward bias the emitter junction through resistor R_E. V_CC still reverse biases collector junction. This also gives the same stability as voltage divider circuit but it is used only if split supply is available.

Fig. 5

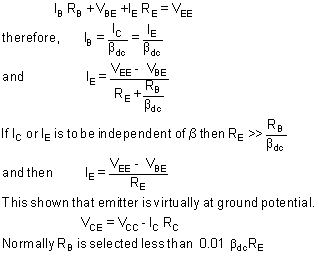

In this circuit, the voltage equation is given by
