SThM Images of Recorded Marks:

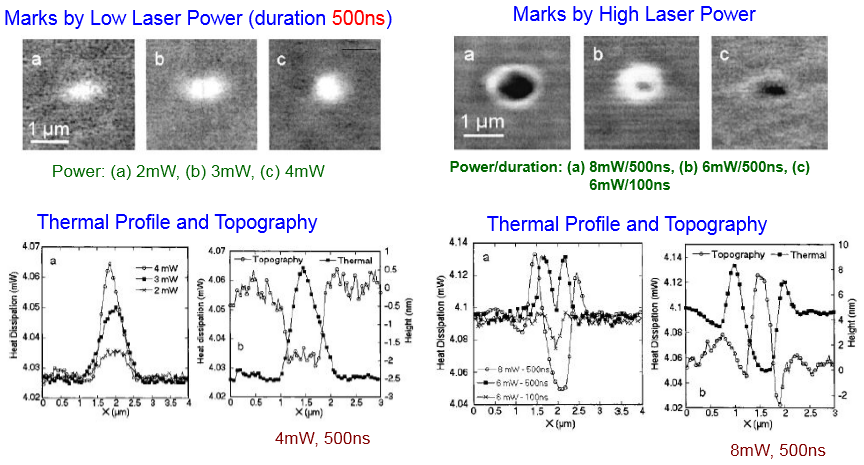

Figure displays the typical recorded marks written using different power values and their thermal profiles [5].
Ref.[5]. O. Bichet et al, J. Appl. Phys. 95 (2004) 2360.
Module 3 : Microscopy techniques
Lecture 20 : Scanning Probe Microscopy (SPM)
SThM Images of Recorded Marks:
Figure displays the typical recorded marks written using different power values and their thermal profiles [5].
Ref.[5]. O. Bichet et al, J. Appl. Phys. 95 (2004) 2360.
