In this lecture we will learn to write part program for turning operations being carried out on a CNC turning center. Let us take an exercise:

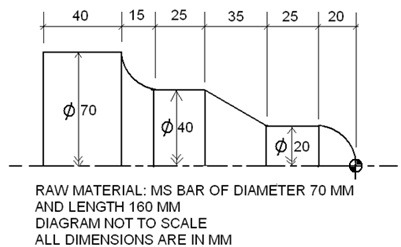

Figure 7.4.1 shows the final profile to be generated on a bar stock by using a CNC turning center.

Figure 7.4.1 A component to be turned.

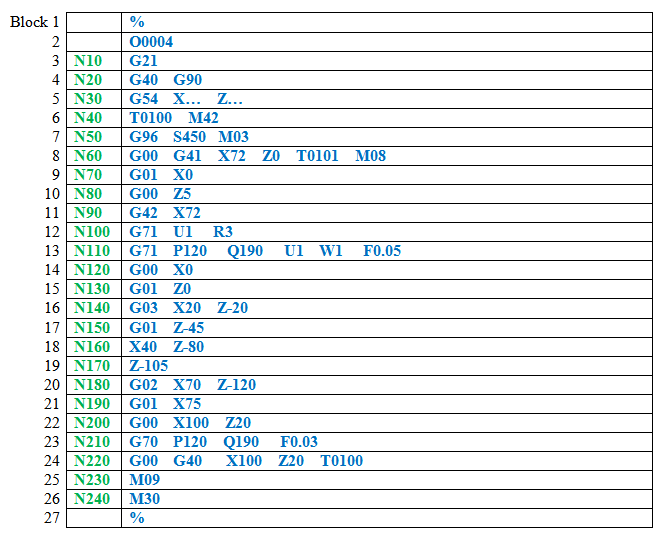

After studying the required part geometry and features, the main program can be written as follows.
