7. Liquid flow

Liquid flow is generally measured by applying the Bernoulli's principle of fluid flow through a constriction. The quantity of fluid flow is computed by using the pressure drop measured. The fluid flow volume is proportional to square root of pressure difference at the two ends of the constriction. There are various types of fluid flow measurement devices being used in manufacturing automation such as Orifice plate, Turbine meter etc.

7.a Orifice plate:

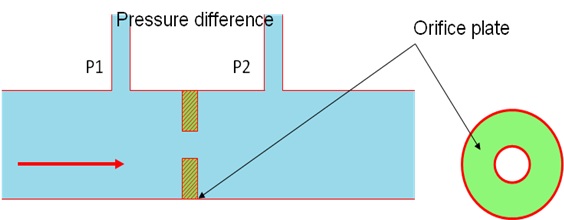

Figure 2.4.11 Orifice Plate [1]

Figure 2.4.11 shows a schematic of Orifice plate device. It has a disc with a hole at its center, through which the fluid flows. The pressure difference is measured between a point equal to the diameter of the tube upstream and a point equal to the half the diameter downstream. Orifice plate is inexpensive and simple in construction with no moving parts. It exhibits nonlinear behavior and does not work with slurries. It has accuracy of ± 1.5%.
