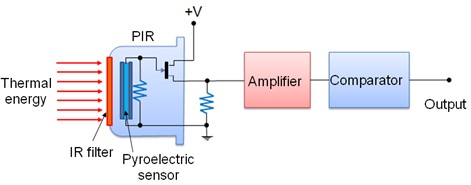

Figure 2.4.4 Construction and working a Pyroelectric sensor

Pyroelectric sensor comprises of a thick element of polarized material coated with thin film electrodes on opposite faces as shown in figure 2.4.4. Initially the electrodes are in electrical equilibrium with the polarized material. On incident of infra red, the material heats up and reduces its polarization. This leads to charge imbalance at the interface of crystal and electrodes. To balance this disequilibrium, measurement circuit supplies the charge, which is calibrated against the detection of an object or its movement.

Applications of Pyroelectric sensors [2]

• Intrusion detector
• Optothermal detector
• Pollution detector
• Position sensor
• Solar cell studies
• Engine analysis
