Example 7

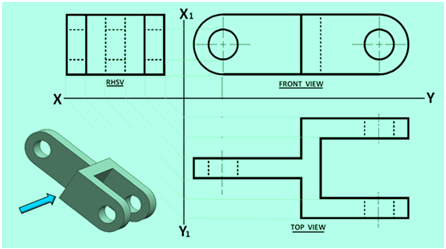

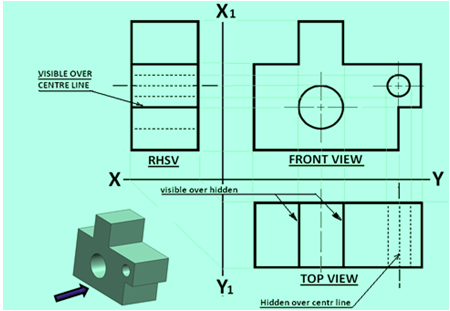

Example 8 (application of Precedence rule)

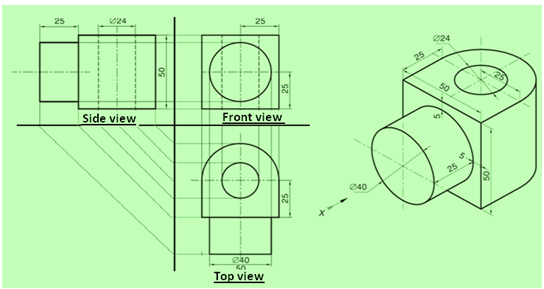

Example 9 (Objects with circular features : holes, flanges, etc )
Module 2 : Theory of projections
Lecture 16 : Orthographic projections: Conventions and projections of simple solids
Example 7
Example 8 (application of Precedence rule)
Example 9 (Objects with circular features : holes, flanges, etc )
