Some ortho graphic projections of solids  showing the different lines and their precedence are shown as examples below. The 3-D view of the respective objects are also shown in the figures with the direction of arrow representing the line of sight in the front view.
A few examples of the projections showing the conventions in drawing are presented below.

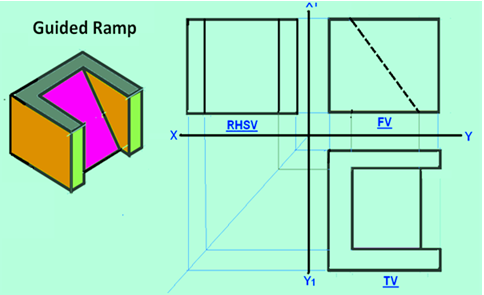

Example 1

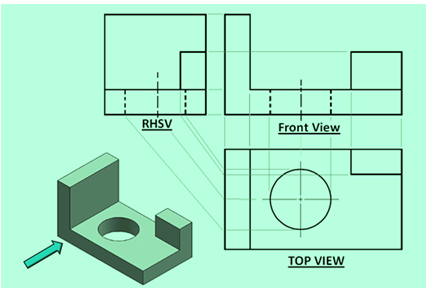

Example 2

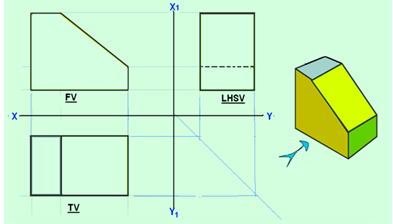

Example 3
