Availability in a finite process

Let x-y be a finite process in which heat is supplied reversibly to a heat engine. Taking an elementary cycle, let dQ₁ be the heat received by the engine reversibly at temperature T₁. Then

1.203

For the whole process x-y,

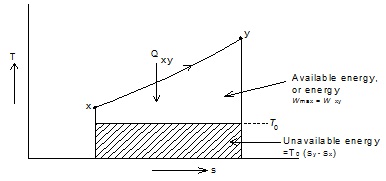

Fig. 1.24 Unavailable energy by 2 nd law of thermodynamics

1.204

Hence, maximum work obtainable is

UE = Qx - y - Wmax

1.205

UE = T0(sy - sx)

1.206
