Module 6 : Design of Retaining Structures

Lecture 29 : Braced cuts [ Section 29.5 : Stability checks for designing a braced excavation: ]


	Stability against piping failure or clay bursting
	Consider the following fig. which shows the clay bursting phenomenon.

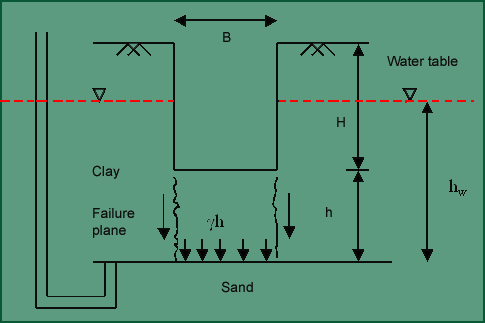

	Fig. 6.38 Excavation with diaphragm walls showing clay bursting
	The cohesive force along the failure plane resists the movement of the soil mass upwards and therefore acts as a resistive force. The factor of safety for clay bursting should be more than 1.3.
