Module 6 : Design of Retaining Structures
Lecture 26 : Introduction [ Section 26.3 : Design Requirement for Gravity walls ]

  For a safe design, the following requirement must be satisfied.
No Sliding

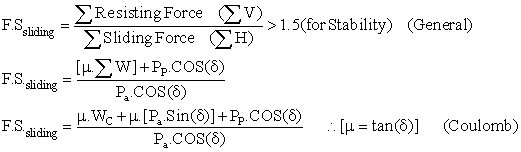

Horizontal forces tend to slide the wall away from the fill. This tendency is resisted by friction at the base.

= Coefficient of friction between the base of the wall and soil (= tan ).

= Sum of the all vertical forces i.e. vertical component of inclined active force.

A minimum factor of safety of 1.5 against sliding is recommended.

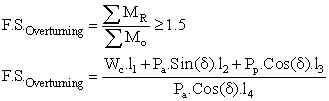

No Overturning


The wall must be safe against overturning about toe.
