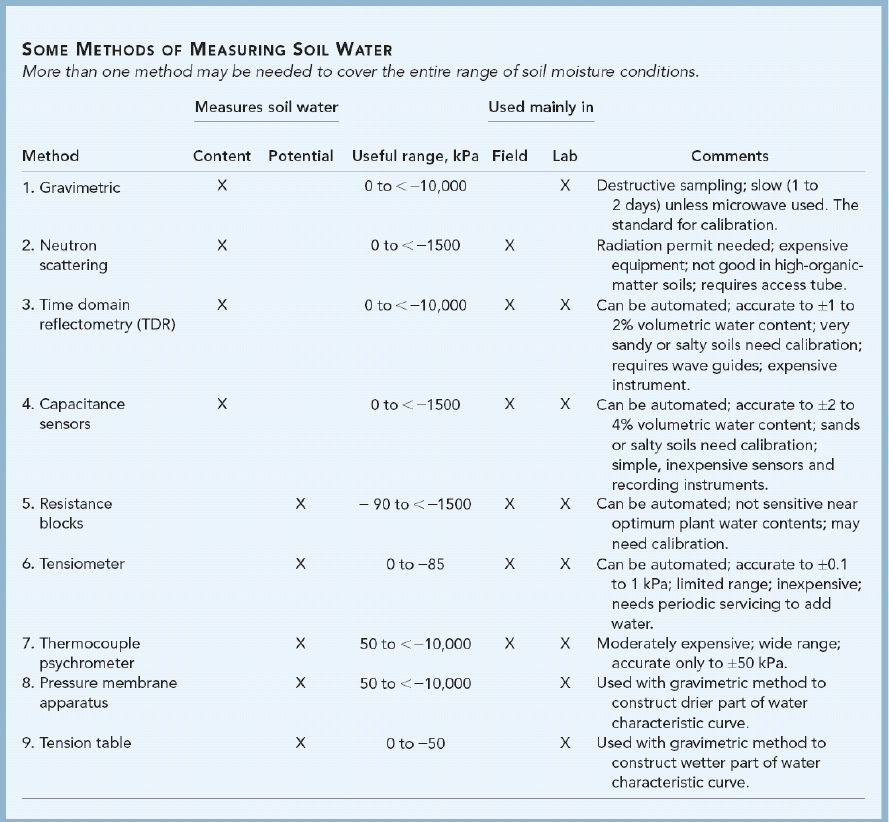

Instrumental measurement of soil water content using time domain reflectometry (TDR). The instrument sends a pulse of electromagnetic energy down the two parallel metal rods of a waveguide that the soil scientist is pushing into the soil (inside photo). The TDR instrument makes precise picosecond measurements of the speed at which the pulse travels down the rods, a speed influenced by the nature of the surrounding soil. Microprocessors in the instrument analyze the wave patterns generated and calculate the apparent dielectric constant of the soil. Since the dielectric constant of a soil is mainly influenced by its water content, the instrument can accurately convert its measurements into volumetric water content of the soil. (Photos courtesy of R. Weil)

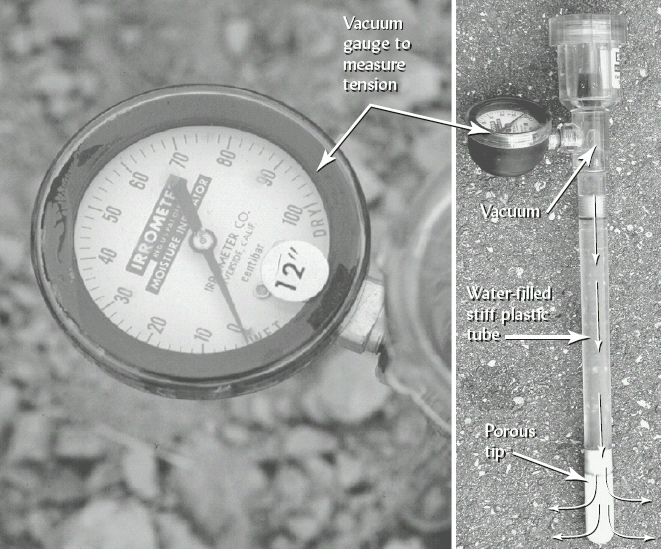

Tensiometer is used to determine water potential in the field. The side view (right) shows the entire instrument. The tube is filled with water through the screw-off top. Once the instrument is tightly sealed, the white porous tip and the lower part of the plastic tube is inserted into a snug-fitting hole in the soil. The vacuum gauge (close up, left) will directly indicate the tension or negative potential generated as the soil draws the water out (curved arrows) through the porous tip. Note the scale goes up to only 100 centibars (= 100 kPa) tension at the driest. (Photos courtesy of R. Weil)
