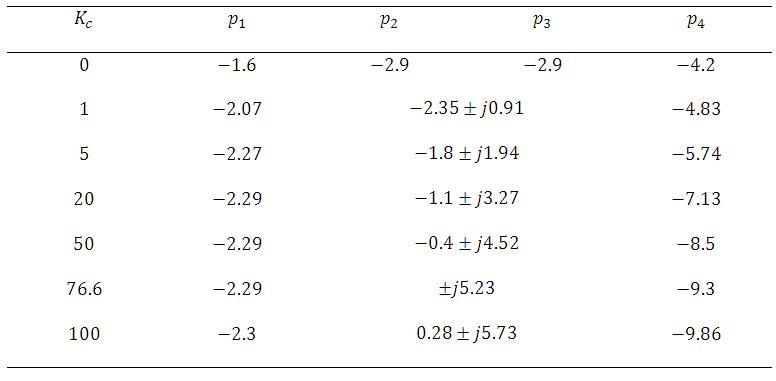

Table IV.4: Location of poles of process (eq.IV.46) as
|
||||
changes from
And the following figure represents the root locus diagram of the process.
|
Module 4 : Feedback controller
Lecture 6 : Stability of a closed loop process
Table IV.4: Location of poles of process (eq.IV.46) as
|
||||
And the following figure represents the root locus diagram of the process.
|

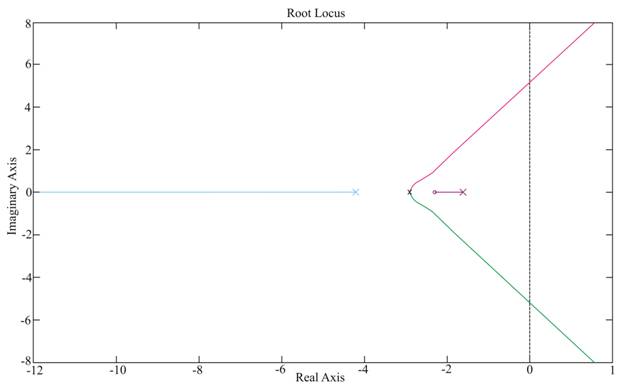

Fig. IV.11: Root Locus diagram of the
transfer function
given in eq. IV.46
