38. 3. TECHNIQUES FOR PRESSURELESS PROCESSING
The Pressureless Processing Techniques are used for starting materials such as monomers, plastic solutions and dispersions that can flow and that can be formed without application of external forces. The pressureless processing techniques include –
- 1. Casting
2. Dipping
3. Coating
4. Foaming
1. Casting (Figure 38.1) : By polymerizing monomers in molds, thick –walled articles, embeddings, sheets and blocks can be produced. These are preferentially made up of polystyrene, polyamides and polymethyl metacrylate. Inorder to avoid thermal stresses, adequate temperature regulation is required. The mold material choice is dependent upon the use and surface quality of the moldings.
Film casting is mainly used in the photographic industry for the manufacture of cellulose acetate films. In this method of casting, polymer solution, melts or dispersions are cast directly into a metal drum or a rotating belt ; and from a slot die into precipitation bath.
Slush molding enables the production of hollow articles which are made from PVC pastes. These are made using two part metal molds, which are heated and filled with the paste. The paste gels on the outermost edges forming a skin ; and subsequently the excess paste is poured off. The remaining layer is gelled in an oven and after cooling, a hollow mold is obtained.
Slush molding can be further modified into Rotational casting for the production of hollow articles, made from PVC. The only difference is that in rotational casting, the amount of PVC paste is metered to the mold, which makes the removal of excess paste and post gelation techniques redundant. The mold is rotated about two perpendicular axes, while heating, and this enables uniform wetting of the cavity surface. Roatational casting has the advantage of low investment cost over slush , molding.
In the manufacture of thick-walled , symmetrical structures such as pipes and sockets, centrifugal casting may be used. A partially filled mold is rotated rapidly about an central axis. Centrifugal force press the material outward in the mold, and in the process, the material gets compacted.

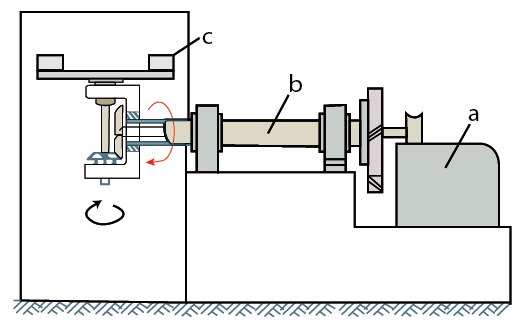

Figure 38.1 . Casting Machine
a) Motor ; b)Drive Shaft; c)Molds
