4.2.5 Screen Conveyor Dryers

Screen conveyor dryer is also called a direct heat continuous type dryer. The solid to be dried are fed on to endless, perforated, conveyor belt through which hot air is forced. The belt is housed in a long rectangular drying chamber or tunnel (figure 2.6). The chamber is divided into series of separate sections, each with its own fan and air heater. Air may be recirculated through, and vented from each section separately or passed from one section to another counter current to the solid movement. The solid is carried through the tunnel and discharged at the opposite end. In order to prevent the higher flow rate of hot air through thinner regions of the bed a uniform feeding rate and distribution of the material over the conveyor is necessary. Coarse granular, flakey, or fibers materials can be dried by through circulation without any pretreatment and without loss of material through the screen. High drying rate can be achieved with good product quality control. Thermal efficiency of this type of dryer is high and with steam heating, the steam consumption for heating the drying gas can be as low as 1.5 kg per kg of water evaporated. Only disadvantage of this type of dryer are high initial cost and high maintenance cost due to the mechanical belt.

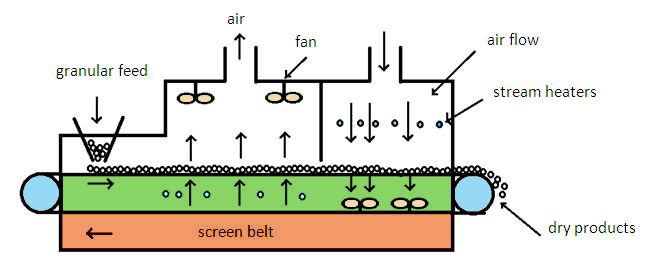

Figure 2.6: Screen conveyor dryer



6.  NOVEL DRYING TECHNOLOGIES

Newer technologies focus on saving in energy consumption that result in considerable overall improvement in energy efficiency. In addition, the final quality of the product is greatly influenced by the drying technique and strategy. A brief overview of some novel drying techniques is given below:
