4.2.4 Fluidised Bed Dryer

Fluidized bed dryer consist of a steel shell of cylindrical or rectangular cross section. A grid is provided in the column over which the wet material is rests. In this type of dryer, the drying gas is passed through the bed of solids at a velocity sufficient to keep the bed in a fluidized state. M ixing and heat transfer are very rapid i n this type of dryers . The dryer can be operated in batch or continuous mode (figure 2.5). Fluidized bed dryer are suitable for granular and crystalline materials. If fine particles are present, either from the feed or from particle breakage in the fluidized bed, there may be considerable solid carryover with the exit gas and bag filters are needed for fines recovery. The main advantage of this type of dryer are: rapid and uniform heat transfer, short drying time, good control of the drying conditions.

In case of rectangular fluid-bed dryers separate fluidized compartments are provided through which the solids move in sequence from inlet to outlet. These are known as plug flow dryers; residence time is almost the same for all particles in the compartments. But the drying conditions can be changed from one compartment to another, and often the last compartment is fluidized with cold gas to cool the solid before discharge.

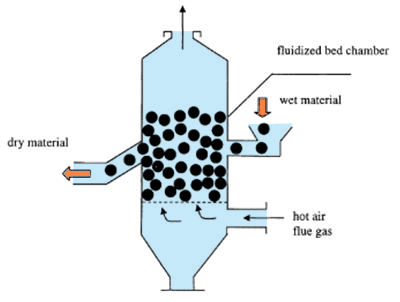

Figure 2.5: Continuous fluidized bed dryer
