4.2.2  Drum Dryer



In drum dryers (Fig 2.3a, b) a liquid containing dissolved solids or slurry carrying suspended solids forms a thin layer on the outside surface of a large rotating drum. For a single drum unit thickness of the film can be controlled by an adjustable scraping blade. In case of a double drum unit thickness can be controlled by the gap between the drums (figure 2.3a). A gas, normally air may be blown over the surface for rapid removal of moisture. The rotation of the drum adjusted so that all of the liquid is fully vaporized and a dried deposit can be scrapped off with the help of flexible or adjustable knife. This type of dryer mainly handles the materials that are too thick for a spray dryer and too thin for a rotary dryer. The solid collects on an apron in front of the knife and rolls to a container or to a screw conveyor. The operation of the drum drier is continuous. The drum is rotated continuously by a gear driven by a pinion that receives its motion through a belt, a chain, or a reduction gear from a direct connected motor. The speed of the drum may be regulated by a variable-speed drive to adopt the speed to any slight variation in the feed quality. The speed of the drum regulated depending upon the nature of materials (i.e wet or dry), if the product material is wet/dry quite a distance before the knife is reached, the speed should be decreased/increased. The design of the components is similar to that of drum filter. The knife may be held just against the surface. It may be brought closer by turning the adjusting wheels. The knife supports may be turned through part of a circle so that the angle of the blade of the knife relative to the drum surface may be selected for the greatest shearing effect. In recent years, double drum dryers have replaced single drum dryer in several applications (figure 2.3b), due to their more efficient operation, wide range of products and high production rates.

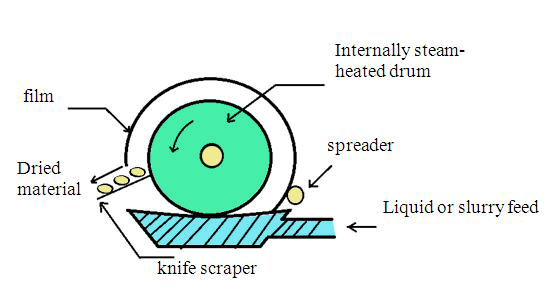

Figure 2.3a: Single drum dryer

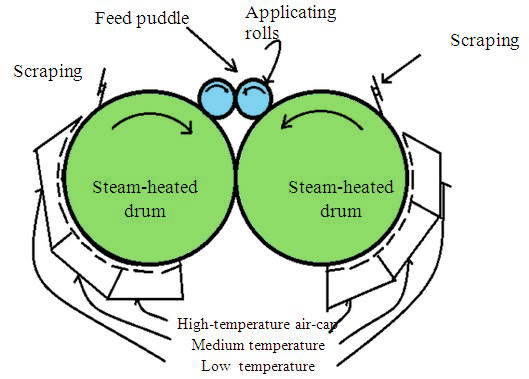

Figure 2.3b : Double drum dryer
