Lecture-1:Review of formation of Images by Lens
Print this page
First   |  Last   |   Prev   |   Next
  1. A convex lens is a lens thicker in the center than at the edge and is converging. The Image formed by Convex lens is normally Real.

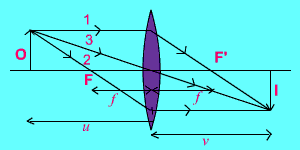

Fig.8.1.7:Real Image Formation Using Convex Lens

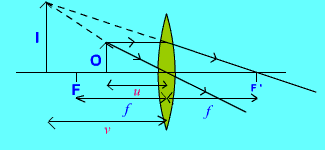

Fig.8.1.8:Virtual Image Using Convex Lens
