Module 6 : PHYSICS OF SEMICONDUCTOR DEVICES
Lecture 33 : Electrons and Holes

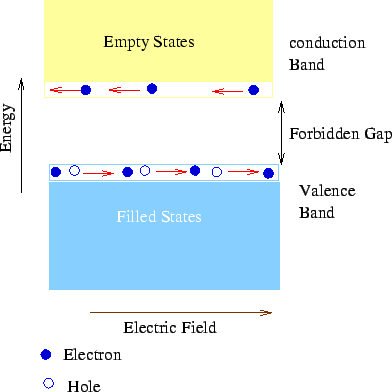

  Thus, the vacancy in the valence band behaves like a particle of positive effective mass and positive charge as far as its behaviour in an electric field is concerned. This vacancy is known as a hole . In a semiconductor, the conduction takes place by motion of electrons in the conduction band and that of holes in the valence band.


\includegraphics{fig5.17.eps}

3
