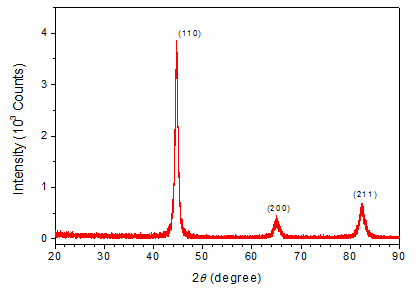

Calculation of structural parameters using XRD patterns:

Calculate the average crystallite size, d-spacing, and lattice constant for the given body centered cubic structured polycrystalline material!

We need to find
(i) peak positions and
(ii) full width at half maxima for each peak.
Subsequently, we can calculate the average crystallite size, d - spacing and lattice constant by substituting these values in the below-mentioned equation.
