3.3 Multistage compressor

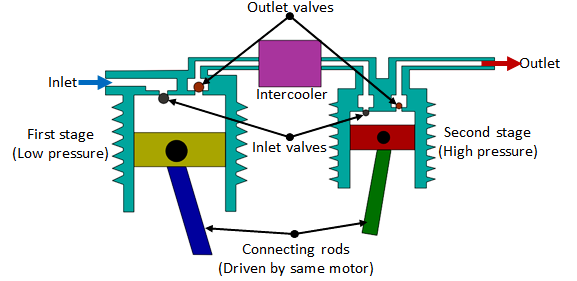

Fig. 6.1.5 Multi-stage compressor

As the pressure of the air increases, its temperature rises. It is essential to reduce the air temperature to avoid damage of compressor and other mechanical elements. The multistage compressor with intercooler in-between is shown in Figure 6.1.5. It is used to reduce the temperature of compressed air during the compression stages. The inter-cooling reduces the volume of air which used to increase due to heat. The compressed air from the first stage enters the intercooler where it is cooled. This air is given as input to the second stage where it is compressed again. The multistage compressor can develop a pressure of around 50bar.

3.4 Combined two stage compressors

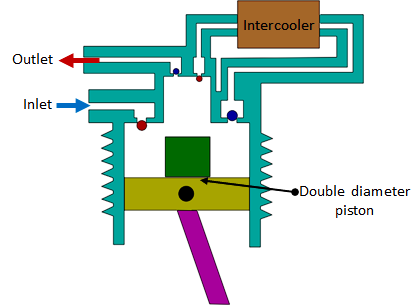

Fig. 6.1.6 Combined to stage compressor

In this type, two-stage compression is carried out by using the same piston (Fig. 6.1.6). Initially when the piston moves down, air is sucked in through the inlet valve. During the compression process, the air moves out of the exhaust valve into the intercooler. As the piston moves further the stepped head provided on the piston moves into the cavity thus causing the compression of air. Then, this is let out by the exhaust port.
